The TE30 Power Supply System is used to provide ultra-long hovering endurance for The TE30 Power Supply System is used to provide ultra-long hovering endurance for drones. When the drone needs to stay in the air for extended periods of time to provide surveillance, lighting and other functions, you can simply connect the device's specialized interface to the Matrice 30 Series Drone Battery, connect the cable to the device interface, and connect the ground end to the power supply for ultra-long drone endurance.
The TE30 power supply system has a wide range of applications, not only for emergency rescue and monitoring missions but also for agricultural plant protection, geological exploration, environmental monitoring and other fields. Whether in emergencies or daily applications, the TE30 power supply system can provide users with reliable endurance support, ensuring that the drone can continue to perform its tasks efficiently.
PRODUCT FEATURES
- Compatible With Dji Matrice M30 Series
- Backpack And Handheld Design
- Generator, Energy Storage, 220v Mains Can Be Powered
- 1.5kw Output Power 1.5kw
- 50meters Cable
- 450w/50000lm Matching Floodlight Power 450w/50000lm
On-board module |
|
items |
parameter |
On-board module dimension |
100mm*80mm*40mm |
weight |
200g |
output power |
1000w |

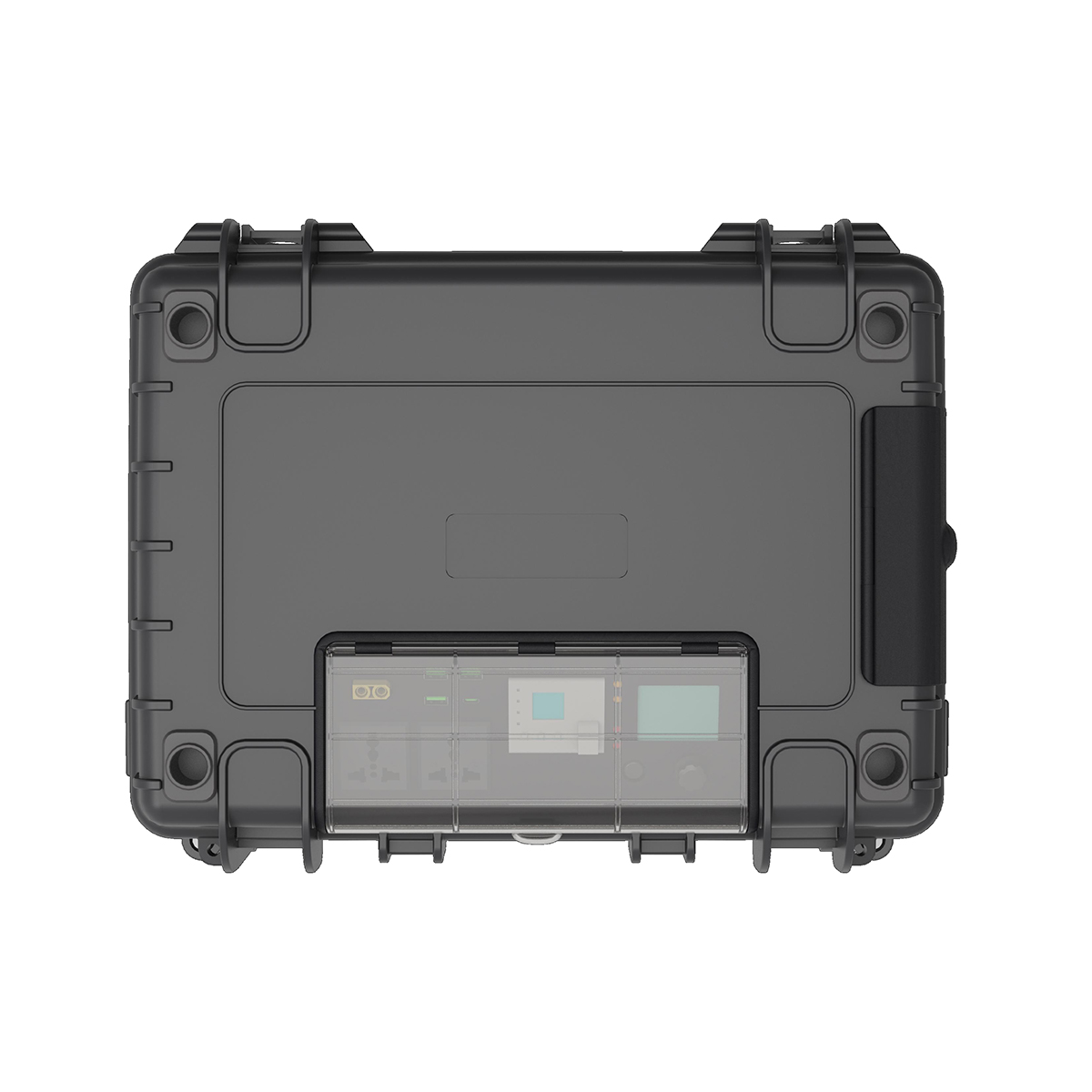

box size |
480mm*380mm*200mm without carrier |
480mm*380mm*220mm includes carrier |
|
full load weight |
10Kg |
output power |
1.5Kw |
cable length |
50m |
operating temperature range |
-20℃-+50°C |

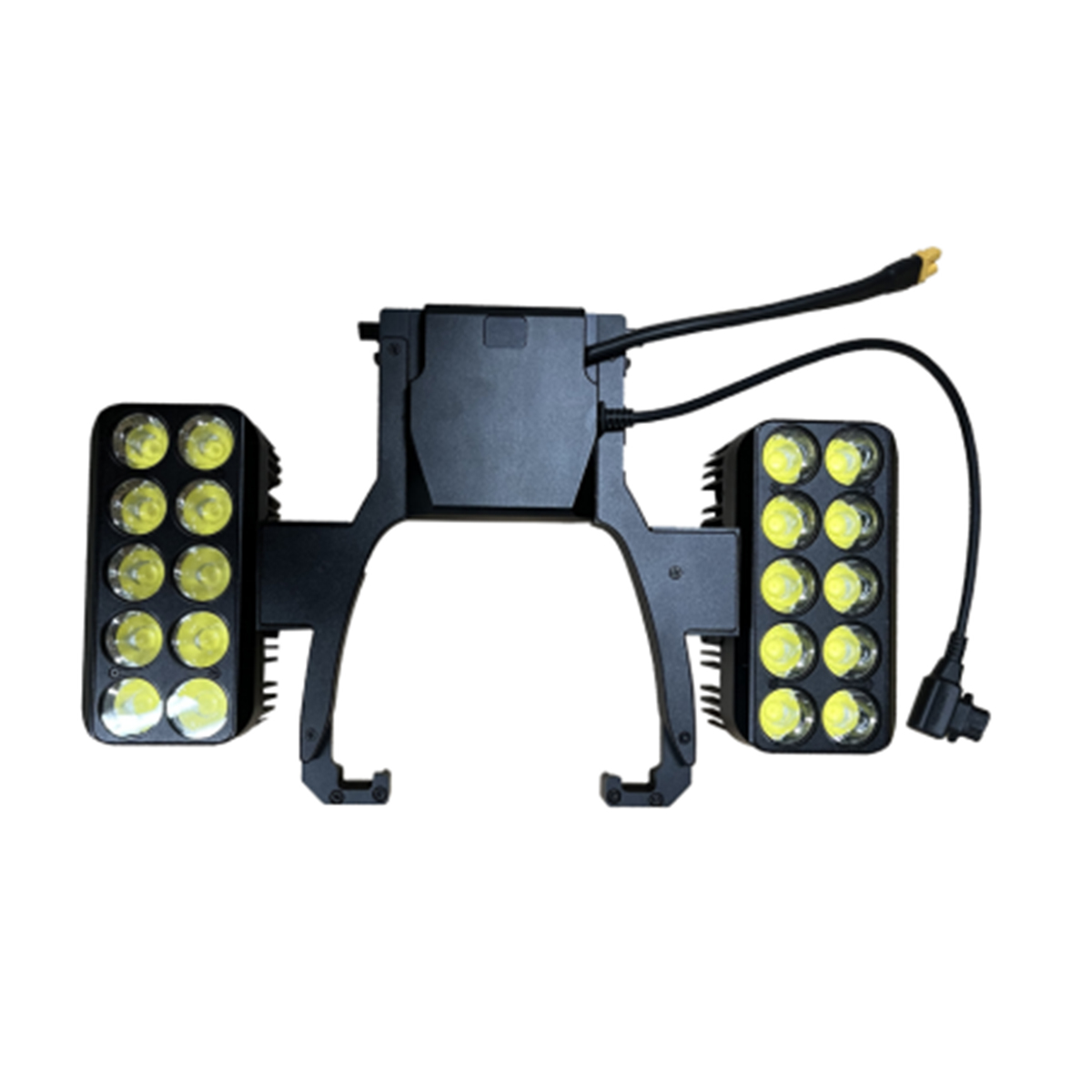

Floodlight |
|
items |
parameter |
dimension |
270mm×155mm×53mm |
weight |
650g |
light type |
(6500K)white light |
total power |
450W/50000LM |
Adjustable range of rotation |
tilt -45~45° |
illumination angle |
60° white light |
Installation |
Bottom quick release, no modifications to the drone for light |
Floodlight |
|
items |
parameter |
dimension |
270mm×155mm×53mm |
weight |
650g |
light type |
(6500K)white light |
total power |
450W/50000LM |
Adjustable range of rotation |
tilt -45~45° |
illumination angle |
60° white light |
Installation |
Bottom quick release, no modifications to the drone for light |
