The TE2 Power System is a system capable of converting single-phase alternating current (AC) to high-voltage direct current (DC) and transmitting it to the onboard power supply via high-performance nickel alloy power cables. Its high-performance nickel alloy power cables can transmit power effectively, ensuring that the drone can continue to operate even in emergencies. At the same time, the application of backup batteries enables the TE2 power system to ensure that the aircraft can operate for long periods without the support of an external power source.
The TE2 power system has a wide range of applications, not only for emergency work on power grids, firefighting, government, and corporate emergency departments but also to meet the needs of units that need to fly at high altitudes and for very long periods. Its stable and reliable performance enables the aircraft to operate safely in a variety of complex environments, providing reliable power support for emergency rescue and long-duration flights.
PRODUCT FEATURES
- Dji Matrice M300/M350
- Compatible With Dji Matrice M300/M350 Series
- Backpack And Handheld Design
- Generator, Energy Storage, 220v Mains Can Be Powered
- 3kwrated Power 3kw
- 10 Meters Cable
- 700w/70000lm Matching Floodlight Power 700w/70,000lm
|
Onboard Power |
|
|
items |
Technical Parameter |
|
dimension |
125mm× 100mm× 100mm |
|
Shell material |
Aviation aluminum alloy |
|
weight |
500g |
|
power |
rated 3.0Kw |
|
Rated Input Voltage |
380-420 VDC |
|
Rated Input Voltage |
36.5-52.5 VDC |
|
Main rated output current |
60A |
|
efficiency |
95% |
|
Over-current protection |
If the output current is greater than 65A, the on-board power supply will be automatically protected. |
|
over-pressure protection |
430V |
|
Output short circuit protection |
Output short-circuit automatic protection, troubleshooting automatically return to normal. |
|
over-temperature protection |
Temperature protection is activated when the temperature rises above 80 °C, the output shutting down. |
|
Controls and interfaces |
Individual control link LP12 aviation waterproof connector special three core MR60 lighting interface |
|

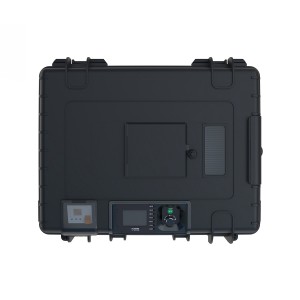

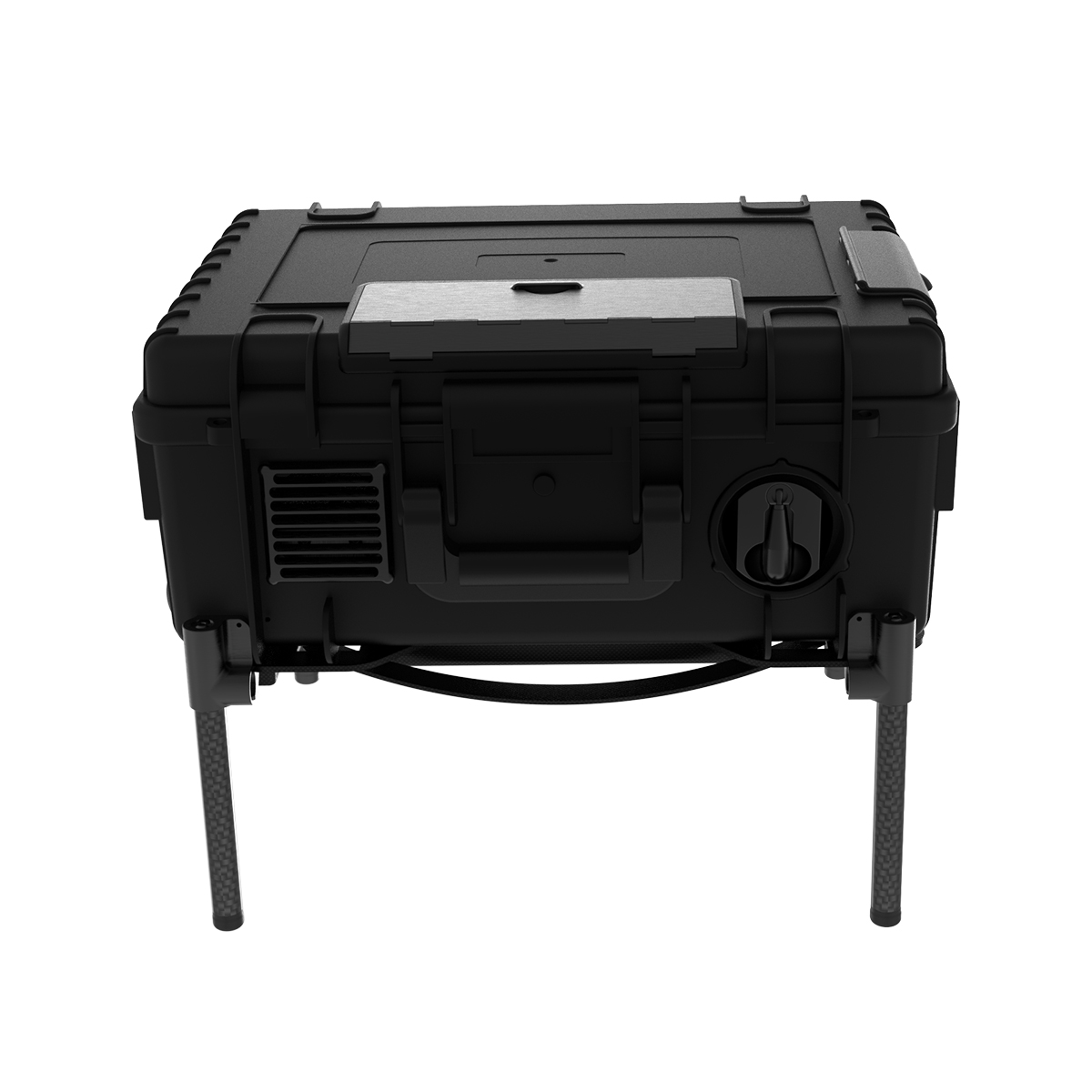

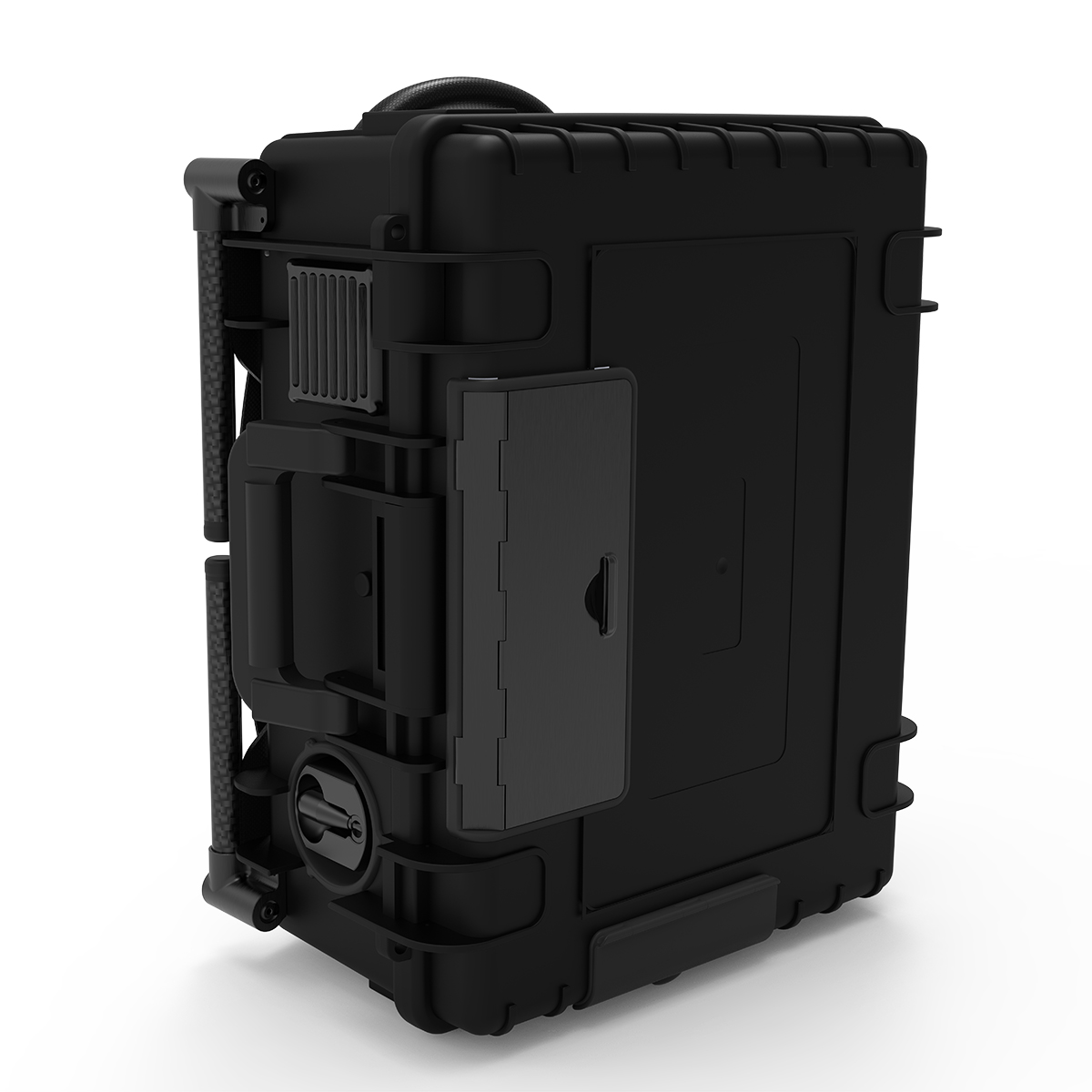

Power Supply System |
|
|
items |
Technical Parameter |
|
dimension |
520mm× 435mm× 250mm |
|
shell color |
black |
|
Flame Retardant Rating |
V1 |
|
weight |
Cable Included |
|
power |
3.0Kw |
|
cable |
110 meters of cable (two power), cable diameter less than 3mm, overcurrent capacity greater than 10A, weight less than 1.2kg/100m, tensile strength greater than 20kg, withstand voltage 600V, internal resistance less than 3.6Ω/100m@20℃. |
|
Rated Input Voltage |
220 VAC+10% |
|
Rated operating frequency |
50/60 Hz |
|
output voltage |
280-430 VDC |
|
Floodlight |
|
|
items |
Technical Parameter |
|
dimension |
225×38.5×21 4 branches |
|
weight |
980g |
|
light type |
(8500K)white light |
|
total power |
700W/70000LM |
|
illumination angle |
80° white light |
|
Installation |
Bottom quick release, no modifications to the drone for light installation |
