PRODUCT FEATURES
Over-temperature protection: The charging tank can automatically disconnect charging when its heat dissipation is poor or the ambient temperature is too high.
|

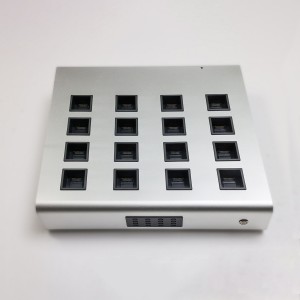

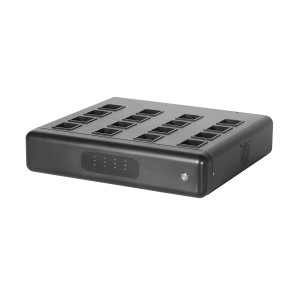

Supported Battery Types |
Mavic 3 Series Intelligent Batteries |
|
Number of Batteries Supported |
16 |
|
Heat dissipation method |
Fan + ventilation cooling |
|
Input Voltage |
220V |
|
Lighting Display |
Corresponds to the battery |
|
Length*Width*Height |
452mm*402mm*101mm |
|
material |
sheet metal+ABS |
|
data interface |
serial port |
|
maximum power |
600W |
|
Battery insertion method |
vertical insertion type |
|
Lighting Color |
Red, Green, Blue |
|
offline use |
Available |
|
Function |
Parameter |
|
Supported Battery Types |
Mavic 2 Series Intelligent Batteries |
|
Number of Batteries Supported |
15 |
|
Heat dissipation method |
Fan + ventilation cooling |
|
Input Voltage |
220V |
|
Lighting Display |
Corresponds to the battery |
|
Length*Width*Height |
454mm*402mm*101mm |
|
Material |
sheet metal+ABS |
|
Data interface |
serial port |
|
Maximum power |
500W |
|
Battery insertion method |
vertical insertion type |
|
Lighting Color |
Red, Green, Blue |
|
Offline use |
Available |
|

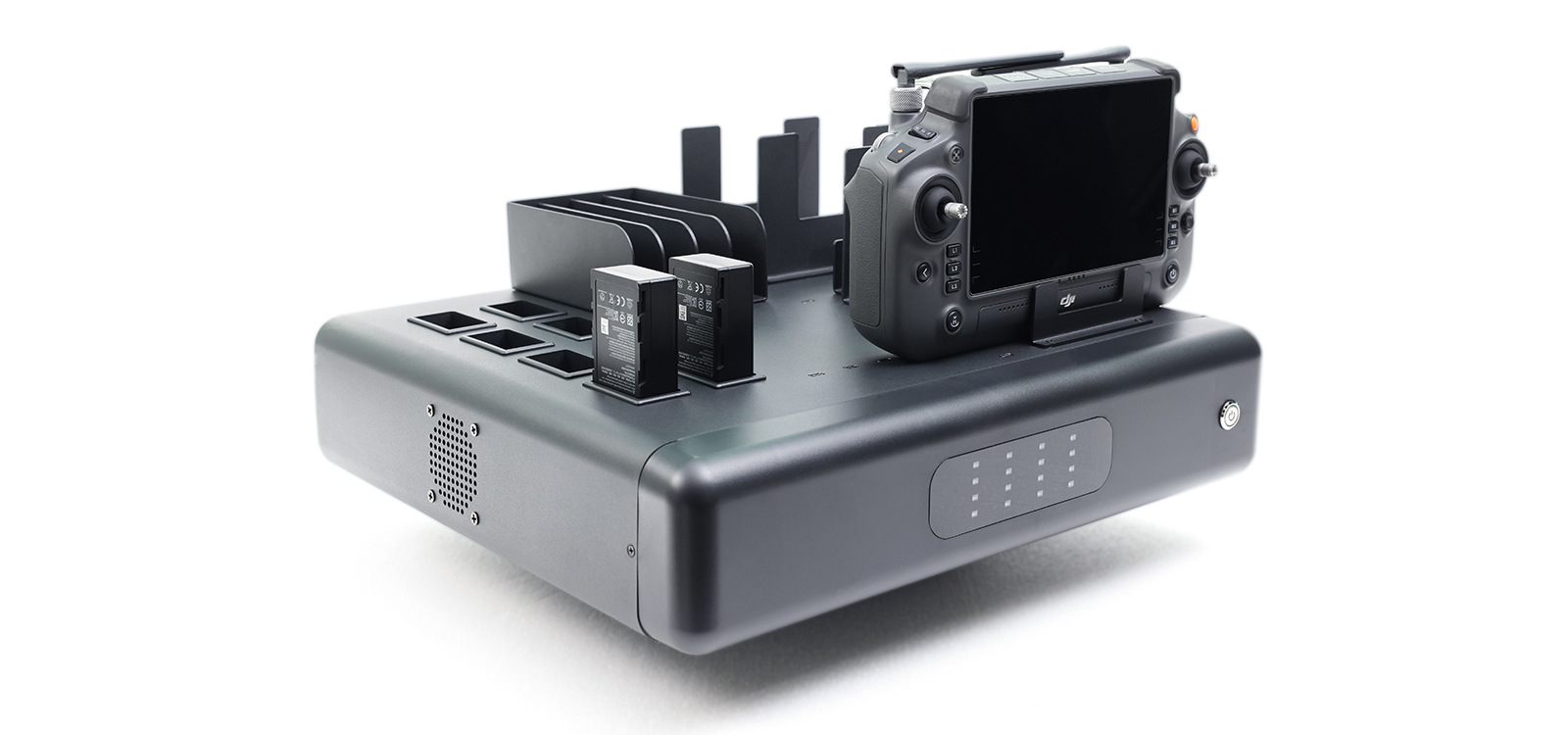

Supported Battery Types |
WB37 Intelligent Battery/Remote Control/Tablet |
|
Number of Batteries Supported |
WB37-8 remote control-4 tablet-4 |
|
Heat dissipation method |
Fan + ventilation cooling |
|
Input Voltage |
220V |
|
Lighting Display |
Corresponds to the battery |
|
Offline use |
Available |
|
Length*Width*Height |
452mm*402mm*101mm |
|
Material |
sheet metal +ABS |
|
Data interface |
serial port |
|
Maximum power |
350W |
|
Battery insertion method |
vertical insertion type |
|
Lighting Color |
Red, Green, Blue |
|

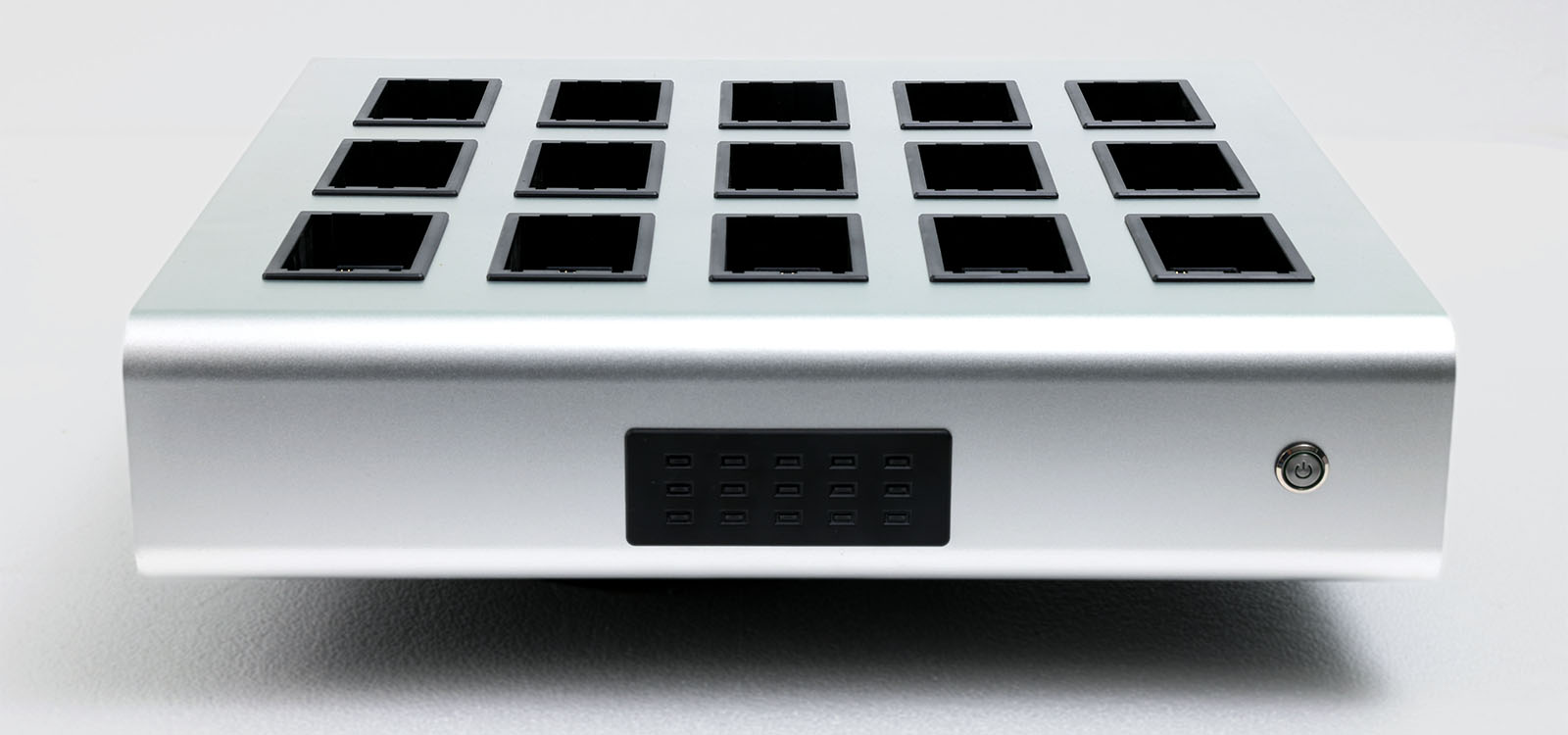

Supported Battery Types |
Phantom4 Series Intelligent Batteries |
|
Number of Batteries Supported |
15 |
|
Heat dissipation method |
Fan + ventilation cooling |
|
Input Voltage |
220V |
|
Lighting Display |
Corresponds to the battery |
|
Length*Width*Height |
454mm*402mm*101mm |
|
Material |
sheet metal+ABS |
|
Data interface |
serial port |
|
Maximum power |
500W |
|
Battery insertion method |
press type |
|
Lighting Color |
Red, Green, Blue |
|
Offline use |
Available |
|
Function |
Parameter |
|

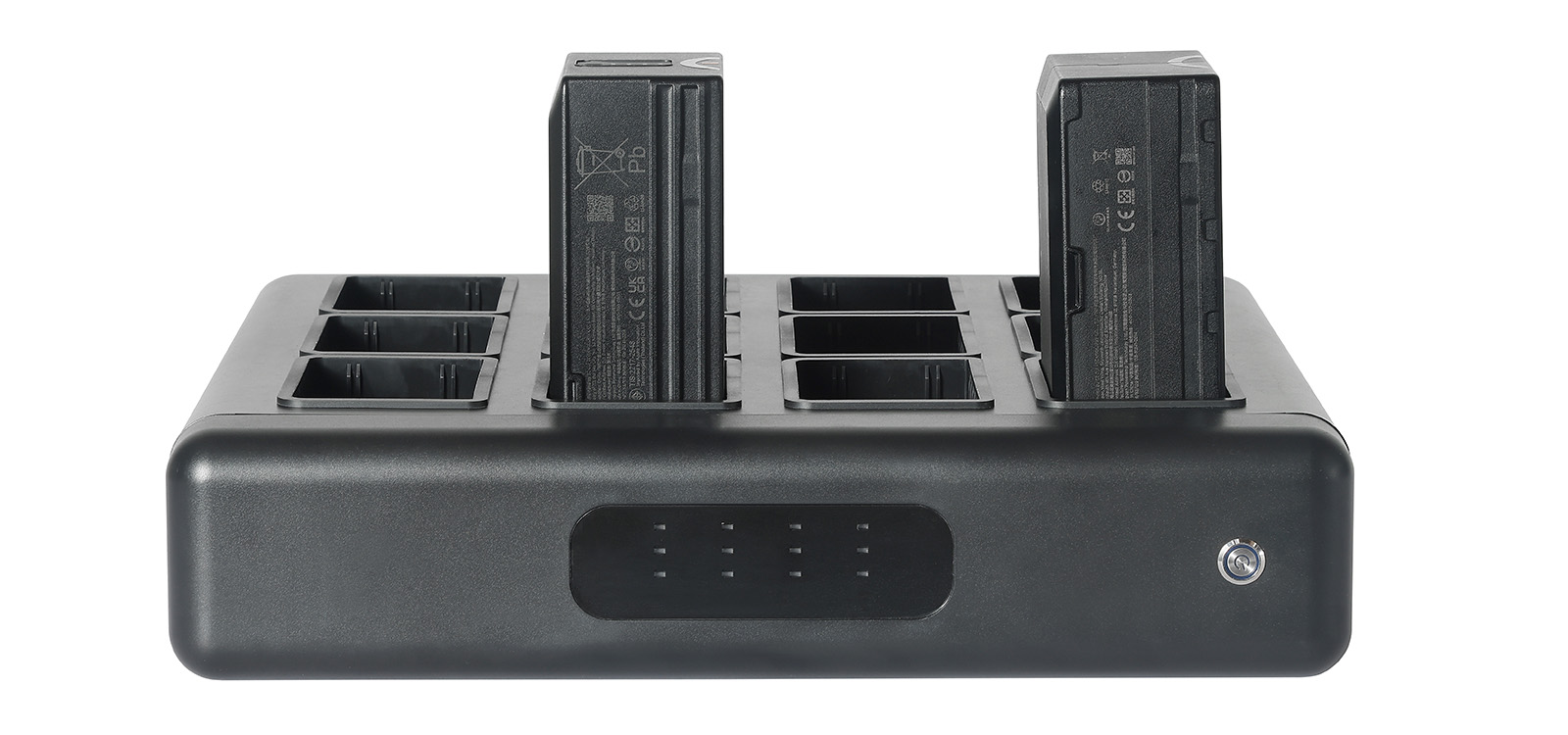

Supported Battery Types |
M300 Series Intelligent Batteries |
|
Number of Batteries Supported |
8 |
|
Heat dissipation method |
Fan + ventilation cooling |
|
Input Voltage |
220V |
|
Lighting Display |
Corresponds to the battery |
|
Length*Width*Height |
470mm*375mm*192mm |
|
Material |
ABS |
|
Data interface |
serial port |
|
Maximum power |
500W |
|
Battery insertion method |
side insertion type |
|
Lighting Color |
Red, Green, Blue |
|
Start/Stop Battery Status |
Available |
|
Offline use |
Available |
|
Function |
Parameter |
|

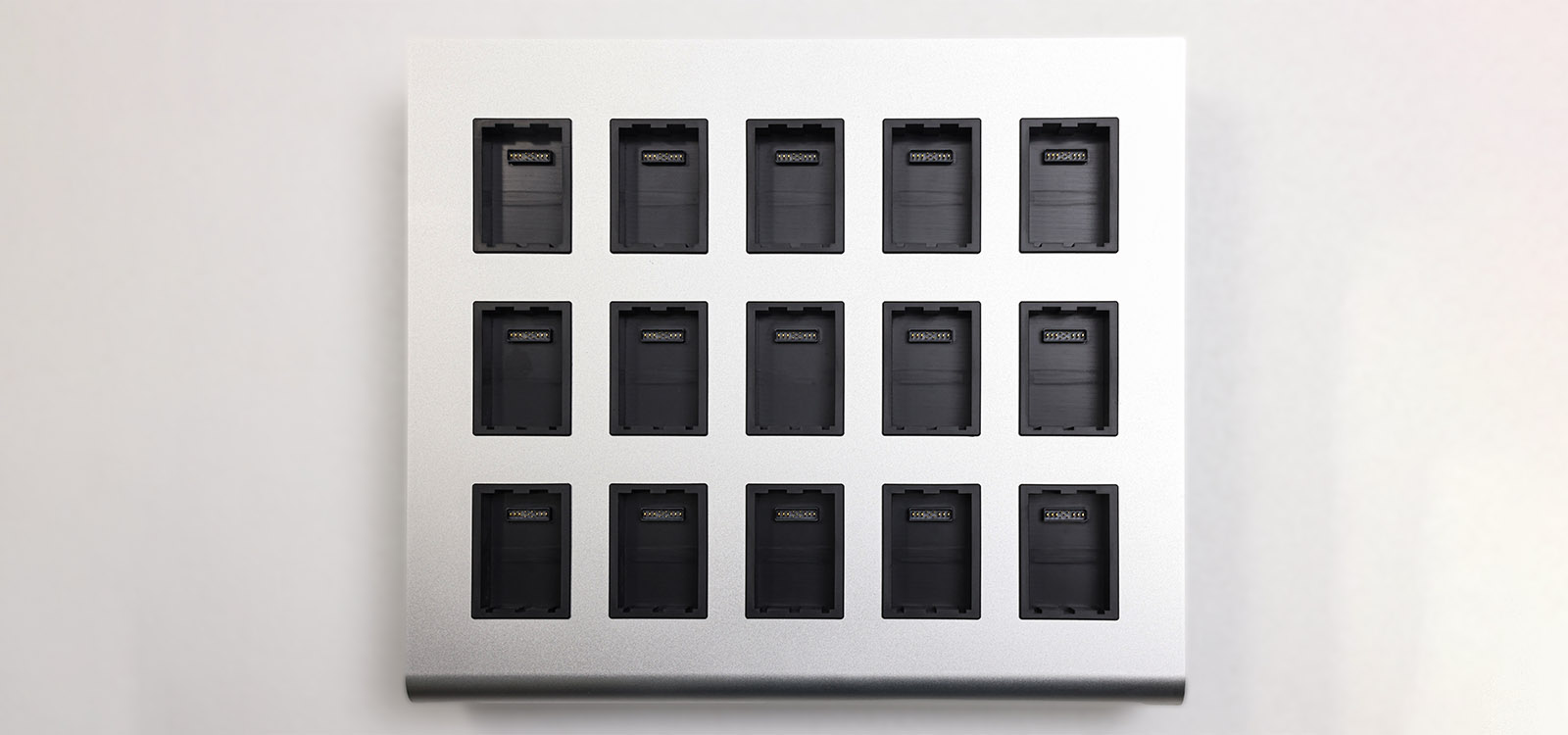

Supported Battery Types |
M30 Series Intelligent Batteries |
|
Number of Batteries Supported |
15 |
|
Heat dissipation method |
Fan + ventilation cooling |
|
Input Voltage |
220V |
|
Lighting Display |
Corresponds to the battery |
|
Offline use |
Available |
|
Length*Width*Height |
452mm*402mm*101mm |
|
Material |
Sheet metal+ABS |
|
Data interface |
Serial port |
|
Maximum power |
600W |
|
Battery insertion method |
Vertical insertion type |
|
Lighting Color |
Red, Green, Blue |
|
Start/Stop Battery Status |
Available |
